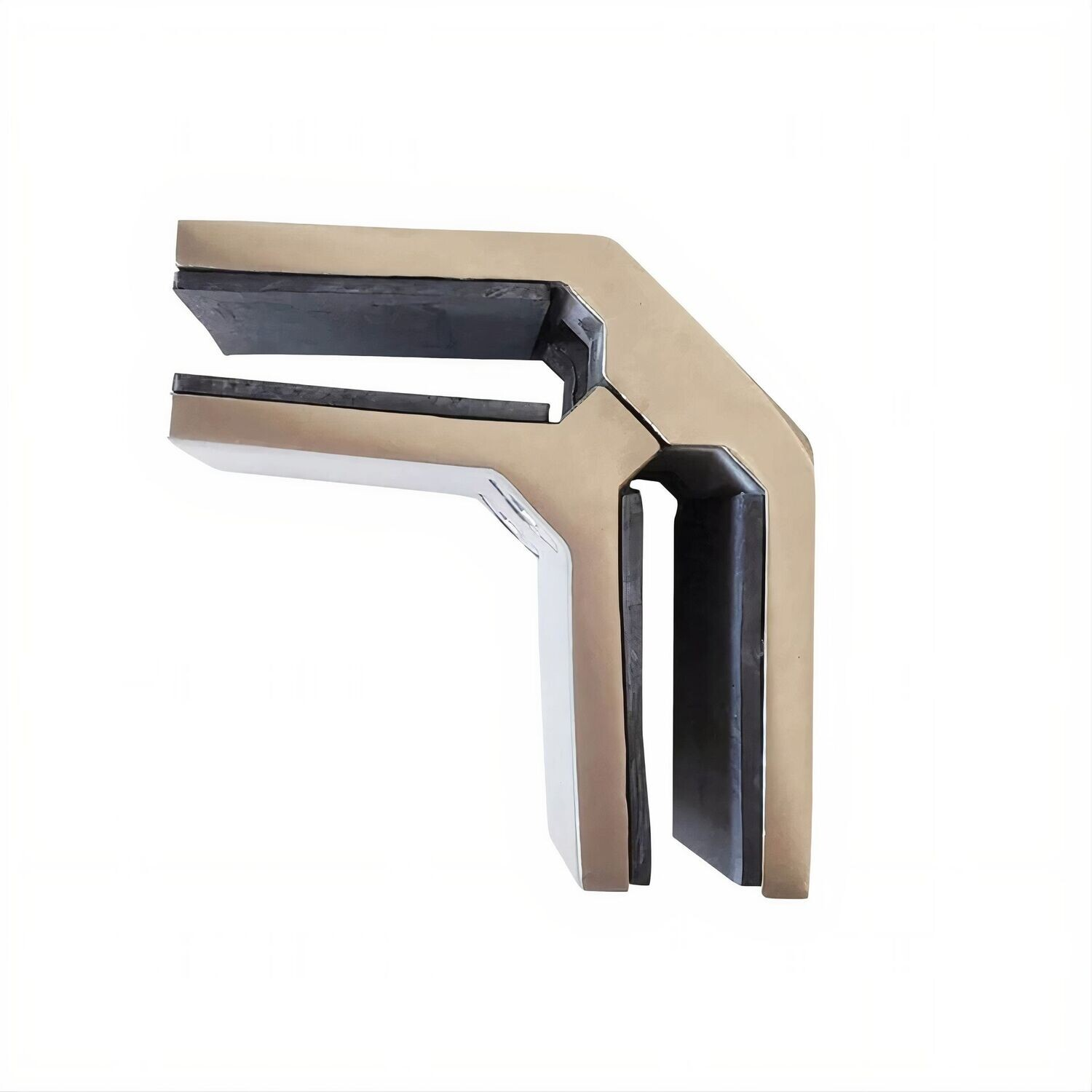

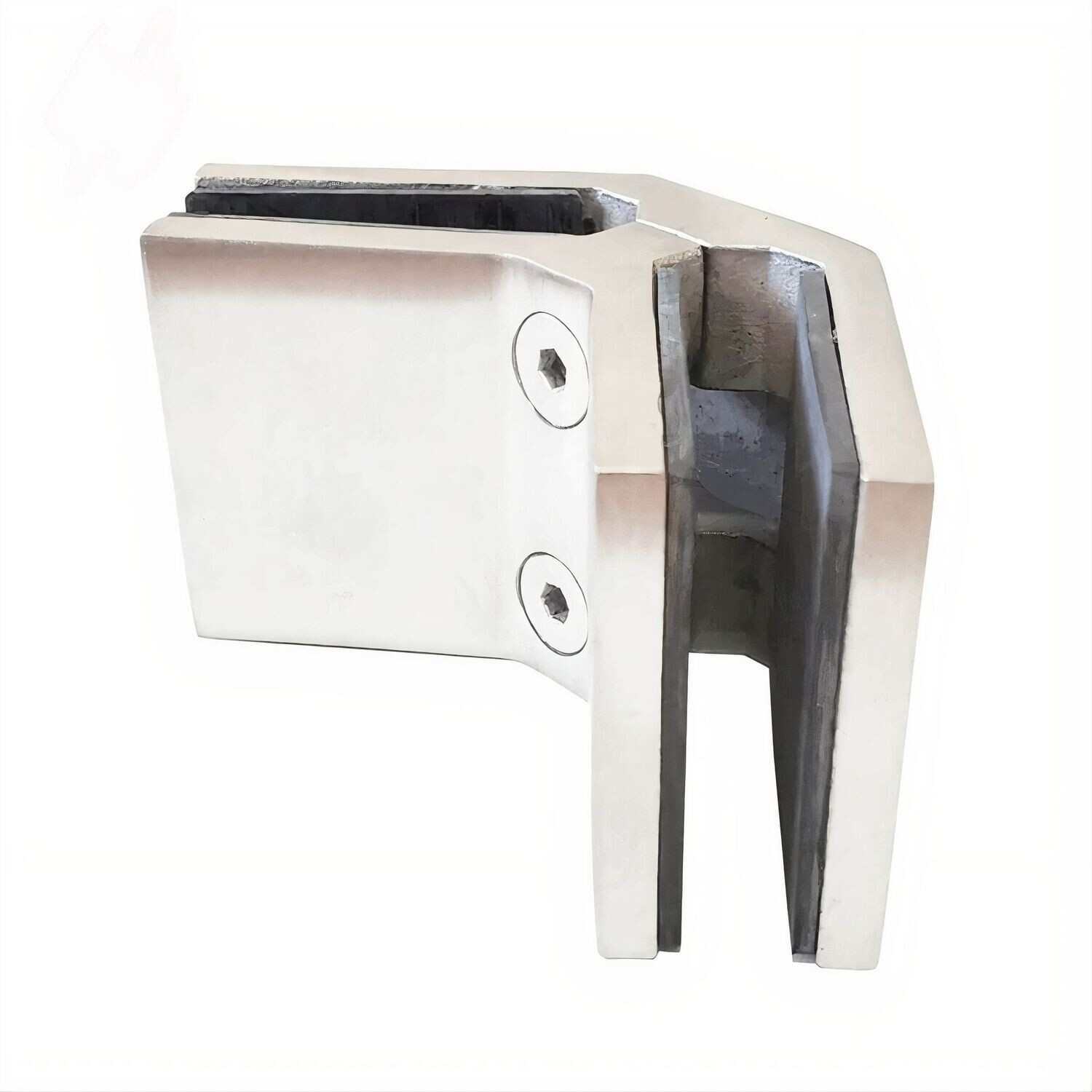

Corner Connector 90° Wide
US$25.00
Corner Connector 90° in Marine Grade #2205 Duplex stainless steel for joining 12mm tempered glass panels at a right angle. Available in Matte Black or Brushed Satin.
Description
Marine Grade corner connector
Our Corner Connector 90° Wide provides a structurally robust joint between two 12mm tempered glass panels at a 90-degree angle with a wider profile for added stability. Manufactured from Duplex #2205 stainless steel (PREN 35).

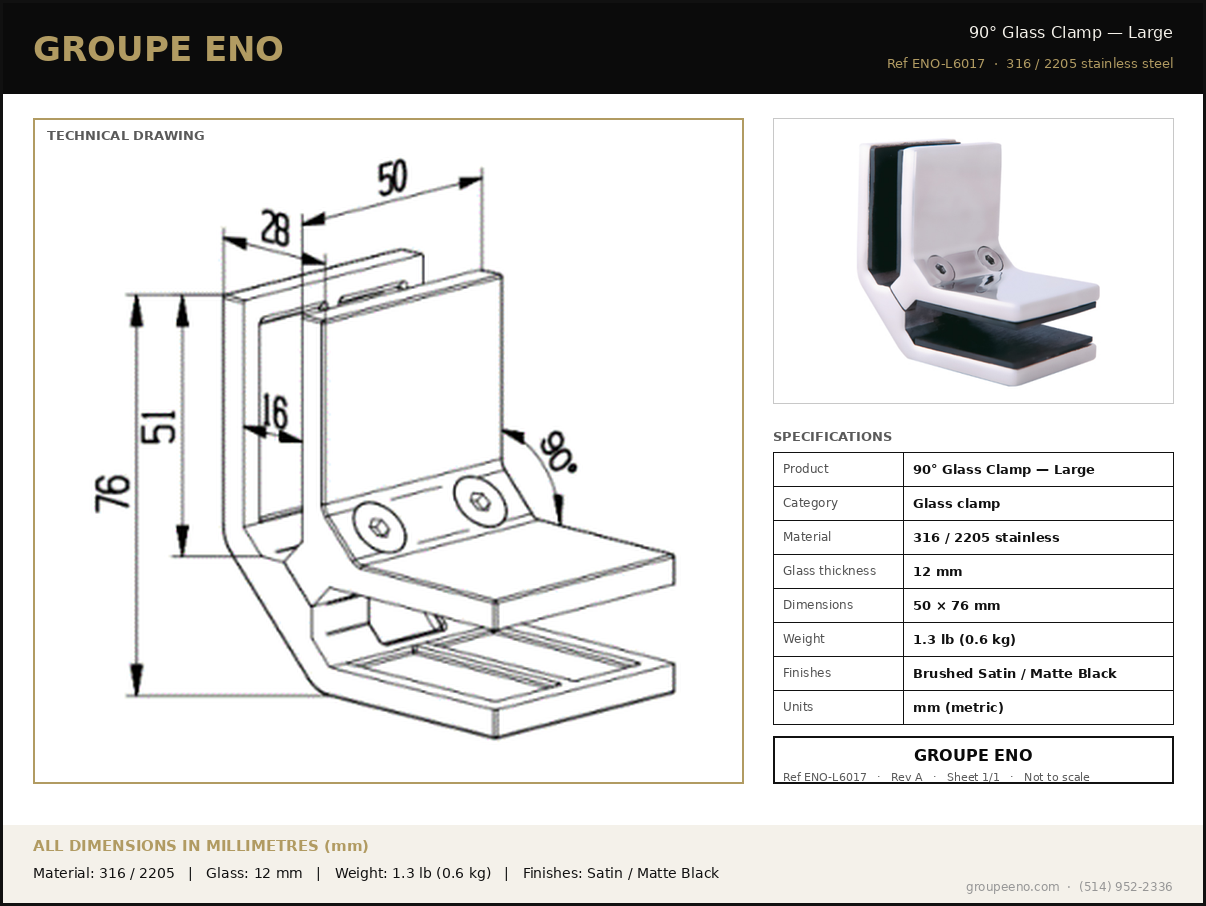

Technical specifications
- Material: Duplex #2205 stainless steel
- PREN: 35
- Angle: 90°

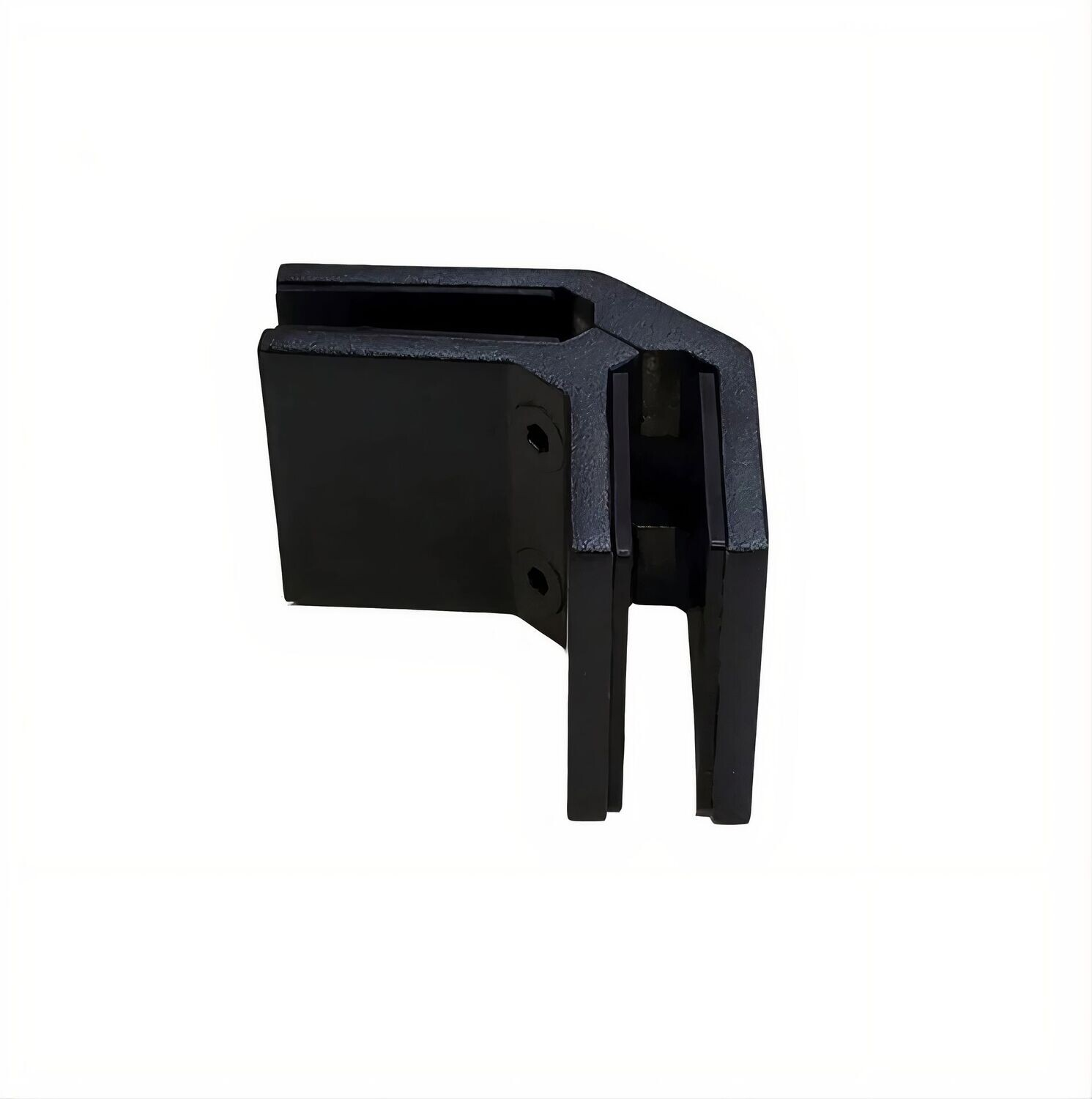

- Finishes: Matte Black, Brushed Satin
- Compatibility: 12mm tempered glass
- Testing: ISO 9227, ASTM A923
Application
Used at corners where two glass panels meet at a right angle (90°). Wide profile for increased structural rigidity. Compatible with all ENO systems. To plan your complete project, see our 2D Configurator.
Warranty and shipping
10 years against corrosion and discoloration. Compliant with ISO 9227 (salt spray) and ASTM A923 standards. Does not cover damage caused by improper installation, modifications or abnormal use. Free shipping across Canada and the United States for orders of $999 and up.
Additional information
| Finish | Matte Black, Brushed Satin |
|---|
