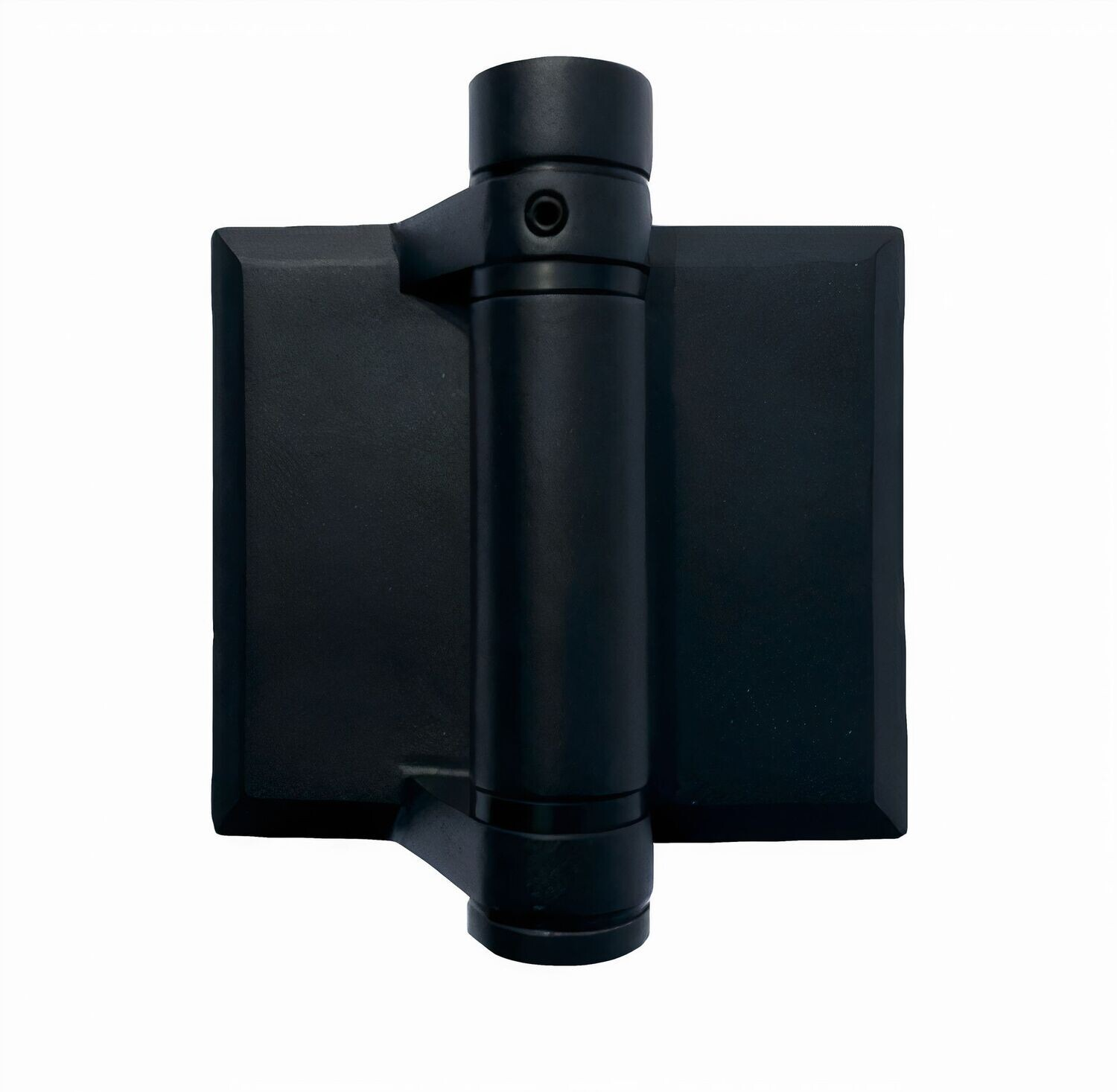

Spring Door Hinge Kit

Description

Marine Grade #2205 hardware

Our hinge is manufactured from Duplex #2205 stainless steel with a PREN of 35, designed to withstand the most demanding environments: chlorinated zones (pools), marine zones (coastal), or weather-exposed installations. 10-year warranty against corrosion and mechanism failure.

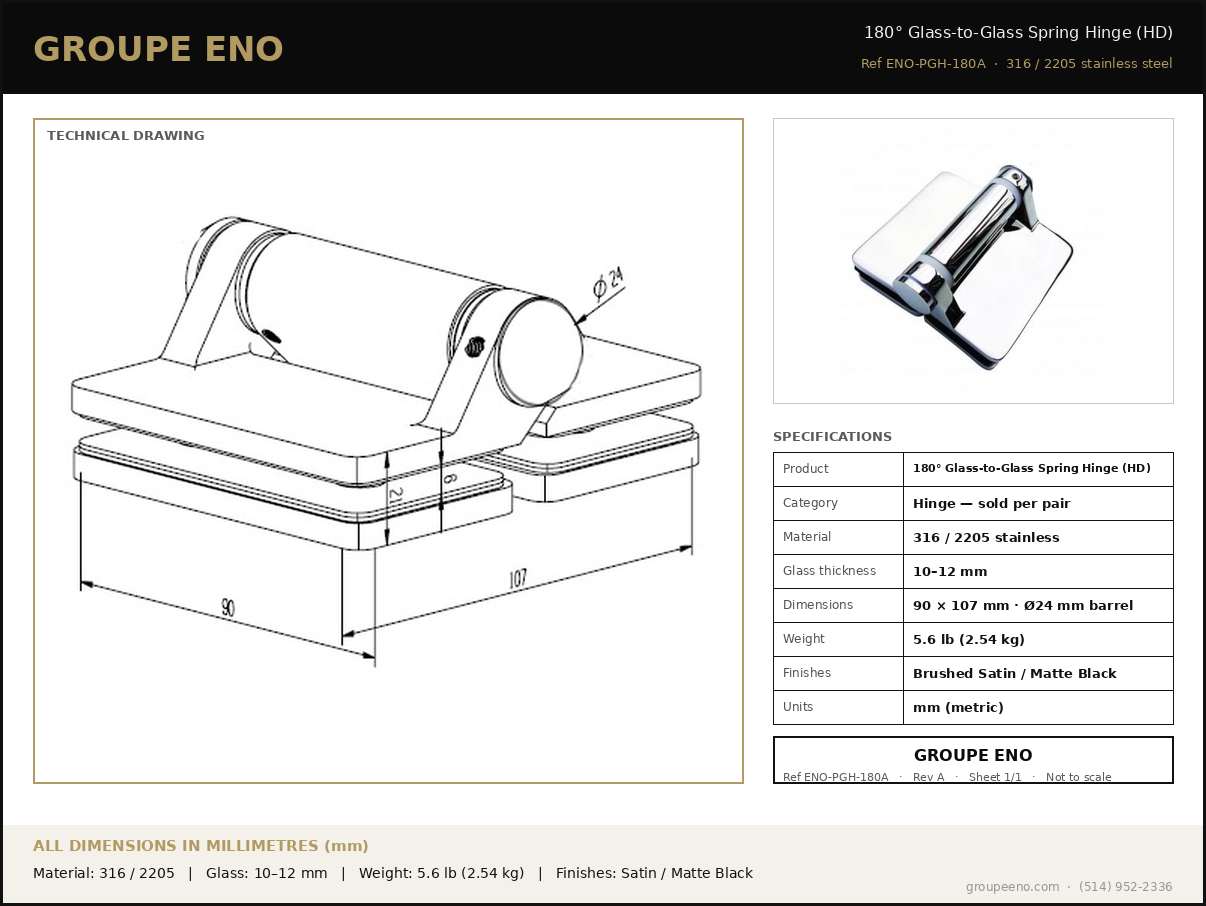

Technical specifications

• Material: Duplex #2205 stainless steel
• PREN: 35
• Finishes: Matte Black, Brushed Satin
• Compatibility: 12mm tempered glass + ENO pre-drilled panels
• Testing: ISO 9227, ASTM A923

Operation

Allows pivoting opening/closing of a glass door. Spring-loaded auto-closing option available for pool code compliance (automatic closure required in Quebec since the 2025 law).

The hinge mounts on an ENO pre-drilled panel adjacent to your glass door. See our 2D Configurator to plan your complete door installation.

Warranty and shipping

10 years against corrosion, discoloration and mechanical failure. Compliant with ISO 9227 (salt spray) and ASTM A923 standards. Does not cover damage caused by improper installation, modifications or abnormal use. Free shipping across Canada and the United States for orders of $999 and up.
